Taq Kasra Isn't a Lost Secret. Nothing Was Lost.

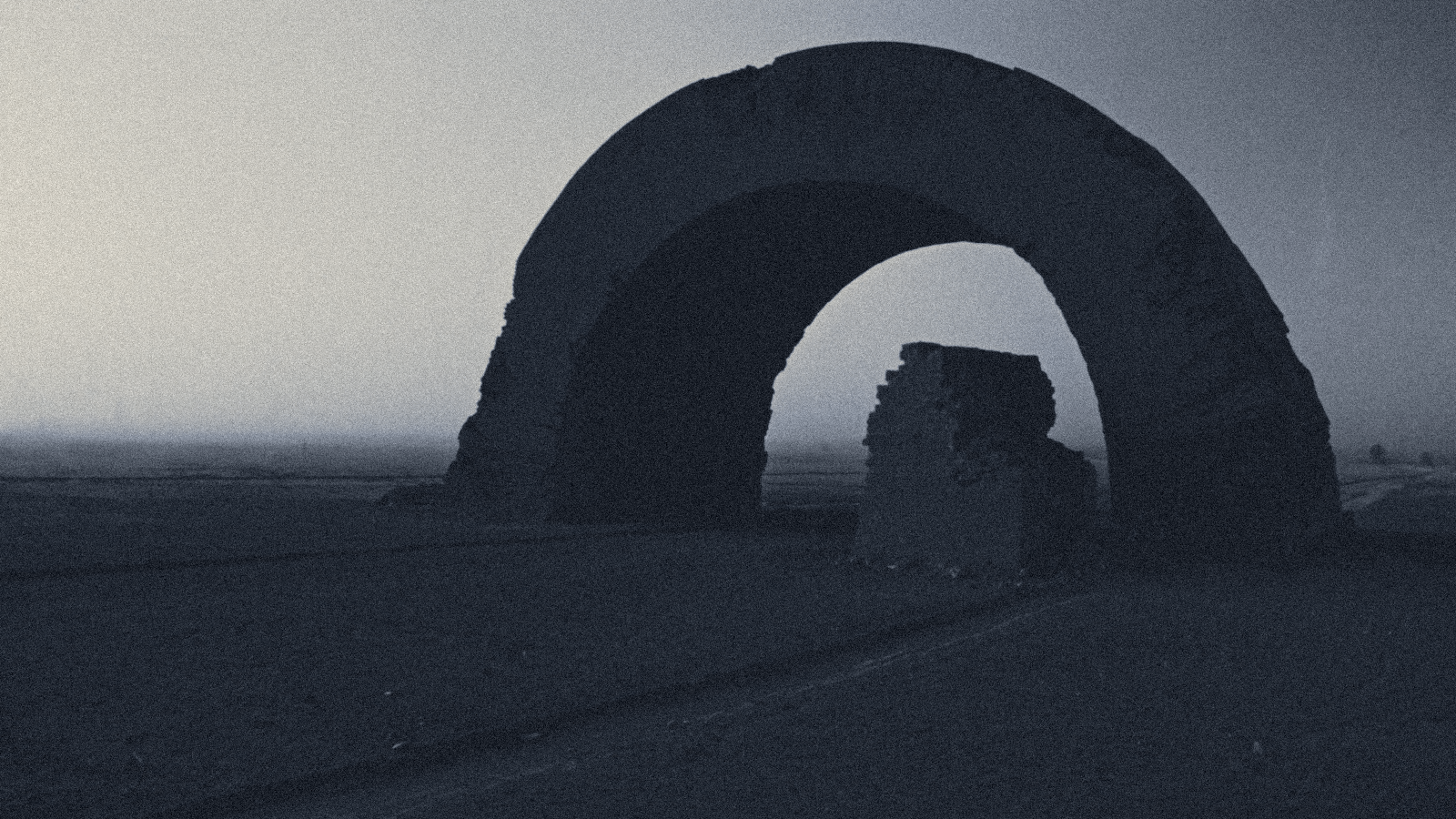

The question people ask about the great arch at Ctesiphon is almost always the wrong one. They stand in front of a single brick vault roughly 37 metres high and about 26 metres wide, spanning a windowless hall some 50 metres deep, built with no visible internal support, and they ask: how did they hold it up while they built it?¹ The honest answer is that nobody held it up. Nothing needed holding up, because the building method never produced an unsupported span until the last brick of the last ring went in. The question assumes a wooden scaffold that was never there and asks how the builders got away without it, as though the absence were the achievement. It has the whole thing backwards. The scaffold-free vault is not a trick performed despite a missing piece of equipment. It is what several thousand years of building in a river valley with almost no structural timber looks like when it finally gets built as large as the available brick and lime could go.

That reframing is the whole argument of this essay, and it is stated early here rather than built up to as a reveal. Taq Kasra — the Arabic name, Ṭāq Kisrā, for what Persian sources also call Ayvān-e Kesrā, the Iwan of Khosrow — is not a lost secret and not a miracle. It is the largest and, as it turned out, the last major structure built in a regional tradition of pitched-brick vaulting that is attested in the same stretch of the Tigris and Euphrates for thousands of years before the Sasanian kings who raised it.⁶ Nothing about how it was built was forgotten afterward, because there was no secret formula to forget in the first place — only a technique that stopped being practised once the shortage that had produced it stopped being a shortage. That makes Taq Kasra a genuinely different kind of story from the one told about Roman concrete on this site: there, a capability quietly disappeared because half of it was tacit knowledge that never made it onto Vitruvius's page.⁸ Here, nothing was lost at all. The constraint that had shaped the technique went away instead, and a solution nobody needs any more simply stops getting used. Those are two entirely different ways for a capability to end, and only one of them deserves the word mystery.

The vault the Tigris nearly finished off

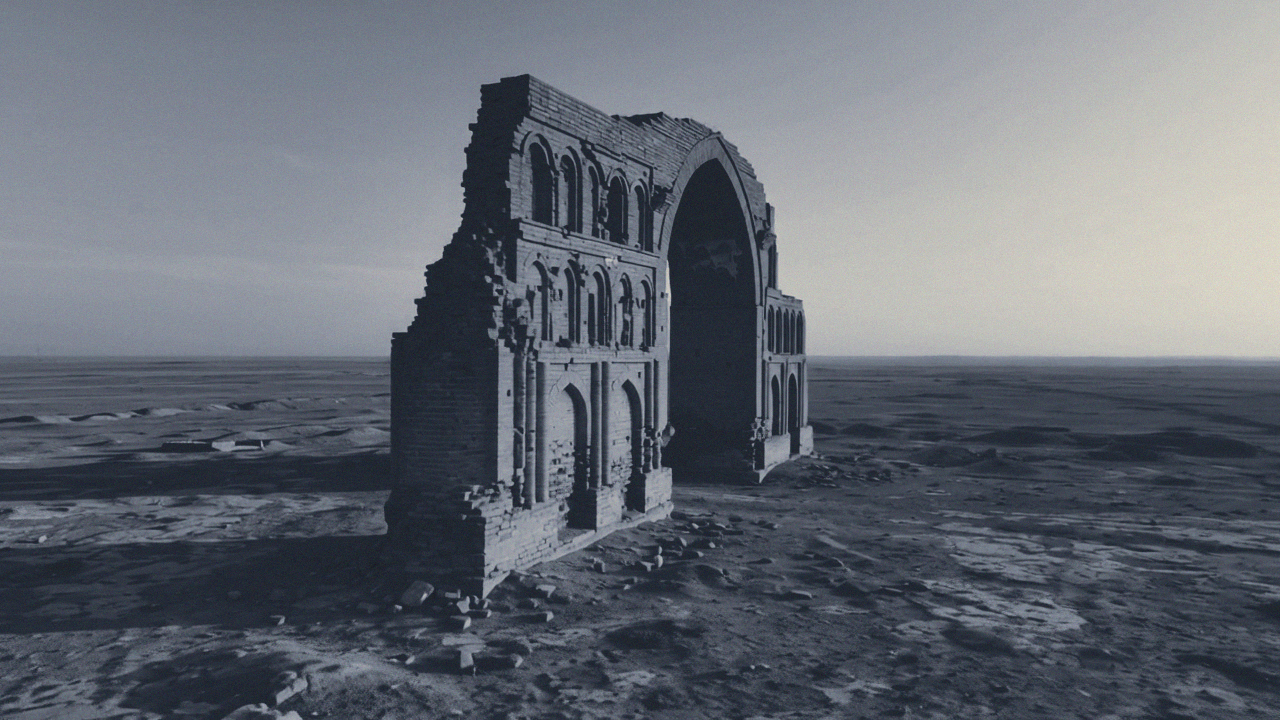

Ctesiphon sat on the east bank of the Tigris, roughly where the town of Salman Pak stands today, some 35 kilometres south-east of Baghdad, and it served for centuries as a capital: first for the Parthian Arsacid kings from around the mid-second century BC, then, after Rome sacked it more than once, for the Sasanian dynasty that overthrew the Parthians in 224 AD and rebuilt it as an imperial seat.⁵ The arch is the one structure of that capital still standing above ground, the surviving façade of what was almost certainly a grand audience hall — an iwan, a vaulted space walled on three sides and entirely open on the fourth, the architectural form the Sasanians used for royal reception on a scale meant to be seen from far outside the building.² The figures usually quoted for it are a height of about 37 metres, a span of roughly 26 metres, and a barrel running back some 50 metres, with walls up to seven metres thick at the base narrowing to roughly a metre at the crown of the arch.¹ It is worth flagging, rather than papering over, that those numbers travel through popular sources more consistently than through a single peer-reviewed survey, and that comparative claims about "largest" brick vaults depend on which few surviving structures anyone bothers to measure against each other in the first place — a small, unevenly documented set. What isn't in serious dispute is the order of magnitude: whatever the exact metre count, this is among the largest vaults of unreinforced brick masonry ever built.²

I have stood under it, and it is one of those things you have to see with your own eyes to believe. The travel writer Robert Byron, passing through in 1933, recorded the arch's height and span and lingered over the colour of its ill-fired brick, whitish buff against the sky.¹⁴

It very nearly did not survive to be seen at all. In 1888 a serious flood on the Tigris brought down roughly a third of what remained of the structure, taking a large section of the northern half of the façade with it — the most significant single loss the ruin suffered in the modern era.⁵⁹ Nineteenth-century travellers' drawings made before that date show a building closer to whole than anything since. Restoration followed, on and off, across the twentieth century and into the twenty-first — Iraqi government work through the 1980s interrupted by war, a University of Chicago-affiliated stabilization effort in the 2000s, a Czech-led restoration completed around 2017 — and even that most recent, most careful intervention did not hold: a section of the remaining structure reportedly came down again around the start of 2021.⁹ What that ongoing instability actually tells us comes up below, because it is not a story about forgotten engineering.

Whose reign, and nobody is quite sure

Ask when Taq Kasra was built and you get several confident, mutually exclusive answers, and the honest response is not to pick one and move on. Ancient and medieval sources credit as many as four different Sasanian kings with it at various points — Shapur I, who reigned 241–272; Shapur II, 309–379; Khosrow I, 531–579; and Khosrow II, 590–628 — and modern scholarship has not converged on a single one of them.⁴ The two candidates taken most seriously today are the earliest and the latest of the plausible pair: Shapur I, on stylistic grounds comparing the surviving façade decoration to earlier Parthian palace architecture nearby, and Khosrow I, on the strength of a tradition that ties a major building campaign at Ctesiphon to his reign following a successful war against Byzantium around 540.⁴ A separate and much later literary tradition, preserved in Ferdowsi's eleventh-century Persian epic the Shahnameh, credits the building to Khosrow II and names a Byzantine architect, Farghān, as the builder — a claim historians of the period generally treat as legend rather than a documentary source, since it surfaces centuries after the fact in a work of epic poetry rather than in a contemporary building record.⁴

A recent study of the arch's structural history, published in the Royal Society's journal for the history of science, works through this tangle of attributions and concludes that the written record simply does not settle the question — there is no contemporary inscription or administrative document naming a patron and a date, the way an Egyptian temple wall or a Babylonian building inscription so often does.⁴ The evidence doesn't support a resolution, and none is manufactured here. What matters instead is what the dispute itself tells you: this was plausibly not a single campaign completed in one reign, but a structure Sasanian kings kept enlarging and rebuilding across roughly three centuries, which makes "who built it" a genuinely ill-posed question rather than a solvable one.⁴

A technique with no name because it needed none

Here is the part of the story that actually explains the missing scaffolding, and it has nothing to do with the vault's size. The method scholars generally attribute to Taq Kasra and to Mesopotamian brick vaulting more broadly is usually called pitched-brick or leaning-course vaulting: bricks are set on edge, not flat, and each ring of the vault is laid leaning back at a steep angle — often cited at somewhere around 15 to 20 degrees off vertical — against the ring built immediately before it, rather than radiating outward from a temporary wooden frame the way a Roman or later European arch typically does.³ Because each course of bricks bears against the previous one from the moment it is laid, rather than depending on the finished vault for its stability, the structure is self-supporting at every stage of construction — there is no point at which an unfinished half-vault needs something underneath it to keep it from falling into the room.³ A vault built this way is identifiable from the inside by exactly that construction logic: the change in the angle of the brick courses where the vault's rings meet the vertical back wall is often still visible once you know to look for it.³ Several accounts also point to a quick-setting gypsum mortar as part of what made it work, letting each leaning course grip fast enough to support the next before the mortar cured; that detail is less consistently documented for Taq Kasra specifically than the leaning-course geometry itself, though gypsum mortar is well attested in Mesopotamian brick vaulting generally.⁶

The scaffold-free vault is not a magic trick performed despite a missing piece of equipment. It is what several thousand years of building in a river valley with almost no structural timber looks like when it finally gets built as large as the available brick and lime could possibly go.

None of this was new when the Sasanians built with it. Archaeological surveys of mud-brick vaulting across ancient Mesopotamia have identified pitched-brick construction, alongside radial and corbelled vaulting, in use as early as the second half of the third millennium BC — meaning the technique behind Taq Kasra predates it by well over two thousand years, deployed at a far smaller scale on storerooms, tombs, and drains long before anyone tried it on an imperial audience hall.⁶ The reason it took hold there and stayed in use for so long is not mysterious either. Southern Mesopotamia has essentially no native structural timber — no forests of the kind that supplied the wooden centering European and Roman builders used as a matter of course — and Mesopotamian building tradition compensated from a very early date by making brick, rather than wood or stone, the default material for almost everything, including roofing spans that other traditions would have framed in timber.⁷¹⁵ Pitched-brick vaulting is what you get when a building culture without wood needs to roof a space wider than a single beam could ever cross: not a workaround invented for one extraordinary building, but the ordinary answer, refined over centuries, to an ordinary and very old shortage.⁷

There is a real engineering subtlety layered on top of that ordinary answer at Taq Kasra specifically, and it deserves its own mention rather than getting folded into the timber-shortage story as though that explained everything. A structural analysis of the surviving vault has argued that its profile is close to parabolic — the shape a chain naturally takes when hung and then flipped upside down, the shape along which the forces in an arch run in pure compression with no bending at all — achieved roughly a thousand years before Robert Hooke's seventeenth-century work formalized the relationship between a hanging chain and the ideal arch.¹⁰ There is no sign the builders at Ctesiphon derived that shape from a theory of forces the way Hooke eventually did. It reads more plausibly as the kind of result that accumulates in a tradition where builders adjust a working method against real failures across generations, arriving at a nearly optimal shape by iteration long before anyone could have proven why it worked. That is still not a lost secret. It is what several centuries of built experience inside one technical tradition can produce without ever being written down as a formula, which is a different thing from a formula that existed and then vanished.

What actually happened to Ctesiphon

The Sasanian empire that had built and repeatedly rebuilt at Ctesiphon came apart quickly at the very end. A Rashidun Arab army defeated the main Sasanian field force at the battle of al-Qadisiyyah in 636, opening the road to the capital, and Ctesiphon itself — known in early Arabic sources as al-Mada'in, "the cities," reflecting the sprawling twin-city complex on both banks of the Tigris — fell after a siege that ran into 637.¹¹ The Sasanian court withdrew east, central authority collapsed within a few more years, and Mesopotamia passed permanently into Arab-Muslim control, part of a remarkably fast run of conquests that had, within two decades of the Prophet's death, brought down one ancient empire and stripped the other of some of its richest provinces.¹²

The arch survived that conquest physically intact, and Arabic historical tradition records what happened to it next: al-Tabari's history of the early Islamic conquests describes the commander Sa'd ibn Abi Waqqas converting the great iwan into a place of Muslim prayer once the city had fallen, and later tradition holds that the caliph Ali himself prayed there.¹³ A separate, more legendary strand — which should be flagged explicitly as legend, since it belongs to the genre of miraculous signs said to accompany the Prophet's birth rather than to any contemporary record of the building — holds that the arch's walls cracked on the night Muhammad was born, an omen later generations read backward as a foretelling of the empire's fall.⁹ That story cannot be verified and is best treated as what it plainly is: religious storytelling attached, after the fact, to a building already famous enough to attract one. What is better attested is the simpler fact — the building was repurposed for prayer, not destroyed, before the newly built city of Baghdad eventually drew the region's population, and its brick, away from the old Sasanian capital for good.⁵

It is worth setting this pattern next to the argument, made elsewhere on this site, about how slowly the conquered populations of the Near East actually became Muslim and Arabic-speaking after 637, because Taq Kasra tracks the same rhythm in miniature: a fast, decisive military and political rupture, followed by a much slower, more ambiguous cultural transition in which older structures — a building, a language, a religious community — persisted, got reused, and only very gradually gave way rather than vanishing at the moment of conquest itself.

Two ways a capability ends

This is where the comparison to Roman concrete earns its keep, because the two essays are genuine opposites built from a similar-looking mystery. The Roman concrete essay argues that the written record survived essentially intact — Vitruvius's treatise was copied, read, and eventually printed continuously from antiquity onward — while the thing that actually made the material exceptional, a specific hot-mixing technique identified only through twenty-first-century materials science, appears never to have been written down at all.⁸ That is documentary survival paired with tacit loss: the book stayed, the hand-knowledge inside the craft did not, and no reader of the surviving text could have reconstructed the missing half from the page alone.

Taq Kasra inverts that structure completely. There was no equivalent tacit loss here, because pitched-brick vaulting was never a fragile, secretive craft confined to one workshop the way a hot-mixed lime clast apparently was. It was a public, widely diffused regional building tradition, practised across Mesopotamia in ordinary buildings for millennia before any Sasanian king used it on an imperial scale, and visible, once you know what to look for, in the very brick coursing of the surviving vault.⁶ Nobody needed a lost book to explain it because there was never a black box to begin with — the "how" is legible in the object itself. What actually happened afterward is not that a technique went missing. It is that the specific shortage the technique answered stopped applying. Once builders across the wider Islamic and later world had reliable access to imported timber, and then to iron and steel framing and eventually reinforced concrete, nobody needed to solve the problem of roofing a wide span with no wood, because the problem itself had gone away.⁷ A technique doesn't need to be forgotten to stop being used. It only needs to stop being the best available answer to a problem that has itself disappeared.

A technique doesn't need to be forgotten to stop being used. It only needs to stop being the best available answer to a problem that has itself disappeared.

That distinction is worth holding onto because the two failure modes get run together constantly in popular writing about ancient engineering, in a way that flatters both stories equally and explains neither. Roman concrete and the Antikythera Mechanism really are stories about capability that failed to propagate — a craft or a workshop skill that a written record never fully captured, and that simply died with the people who held it. Taq Kasra is not that story, and treating it as though it were the same kind of mystery erases the much more interesting and more useful truth: sometimes nothing is lost, constraints just change, and a technique that made perfect sense for three thousand years quietly retires because the world it was built to answer stopped existing. The same is true, in a different register, of the vast cuneiform archive still sitting mostly unread in museum basements — that is a case of documented knowledge simply not yet processed, a third failure mode again, distinct from either of the first two, and worth not confusing with them either.

What genuinely threatens Taq Kasra today is not a riddle at all, and it would be a disservice to end on the engineering puzzle as though that were still the live danger. The 1888 flood, the interrupted twentieth-century restorations, and the section that came down again around 2021 are not evidence of forgotten knowledge — modern structural engineers understand pitched-brick vaulting perfectly well, and conservation teams from Iraq, the University of Chicago, and Czech specialists have all worked on the site in living memory.⁹ What has repeatedly stalled that work is money, political instability, and the ordinary difficulty of keeping a large, unreinforced ancient structure standing on a flood-prone riverbank without sustained funding — the same essential failure that runs under the Library of Alexandria's slow decline far more than any single catastrophic event.⁹ The arch that needed no wooden scaffold to go up is now held up, if it is held up at all, by whichever ministry can be persuaded to pay for the next round of repairs. That is not a mystery either. It is a less romantic problem than a lost secret, and a considerably more solvable one, if anyone with the money stays interested long enough to solve it.
